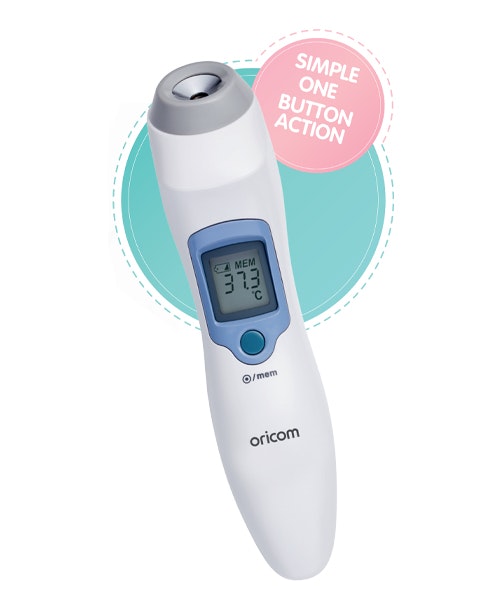

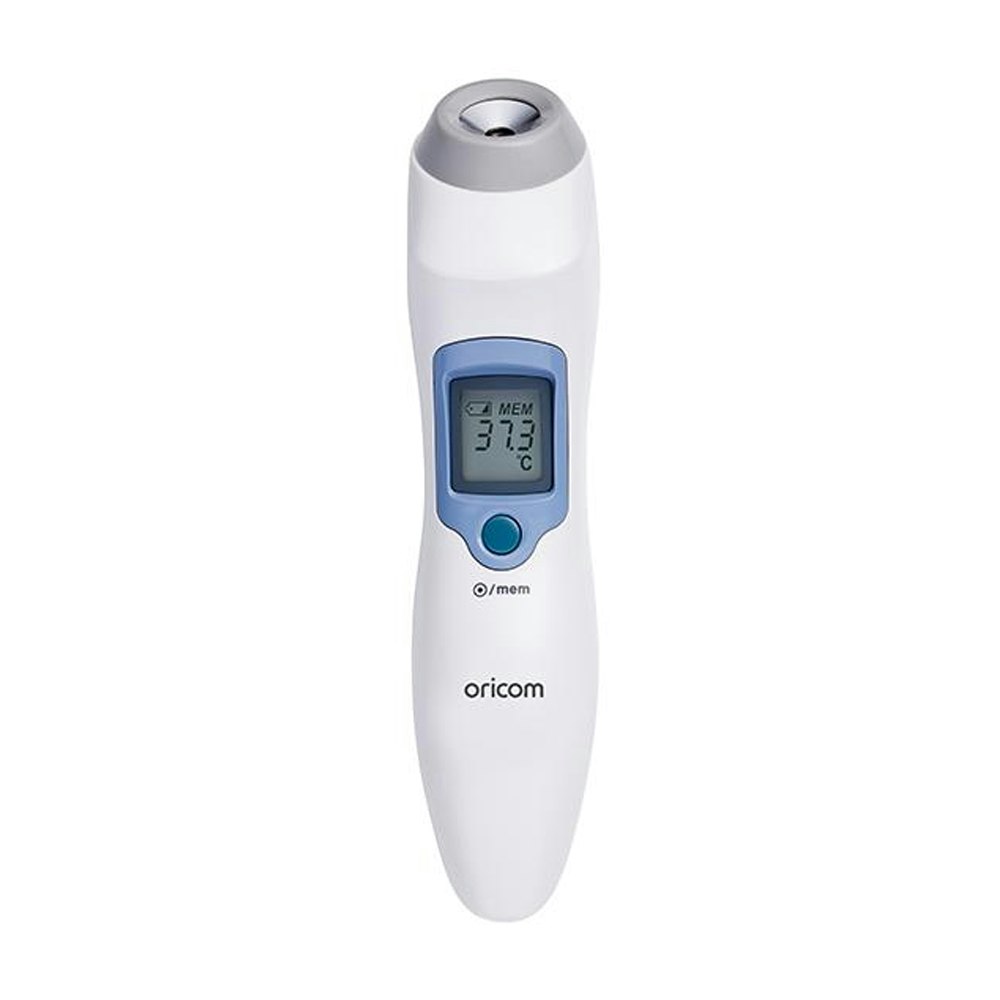

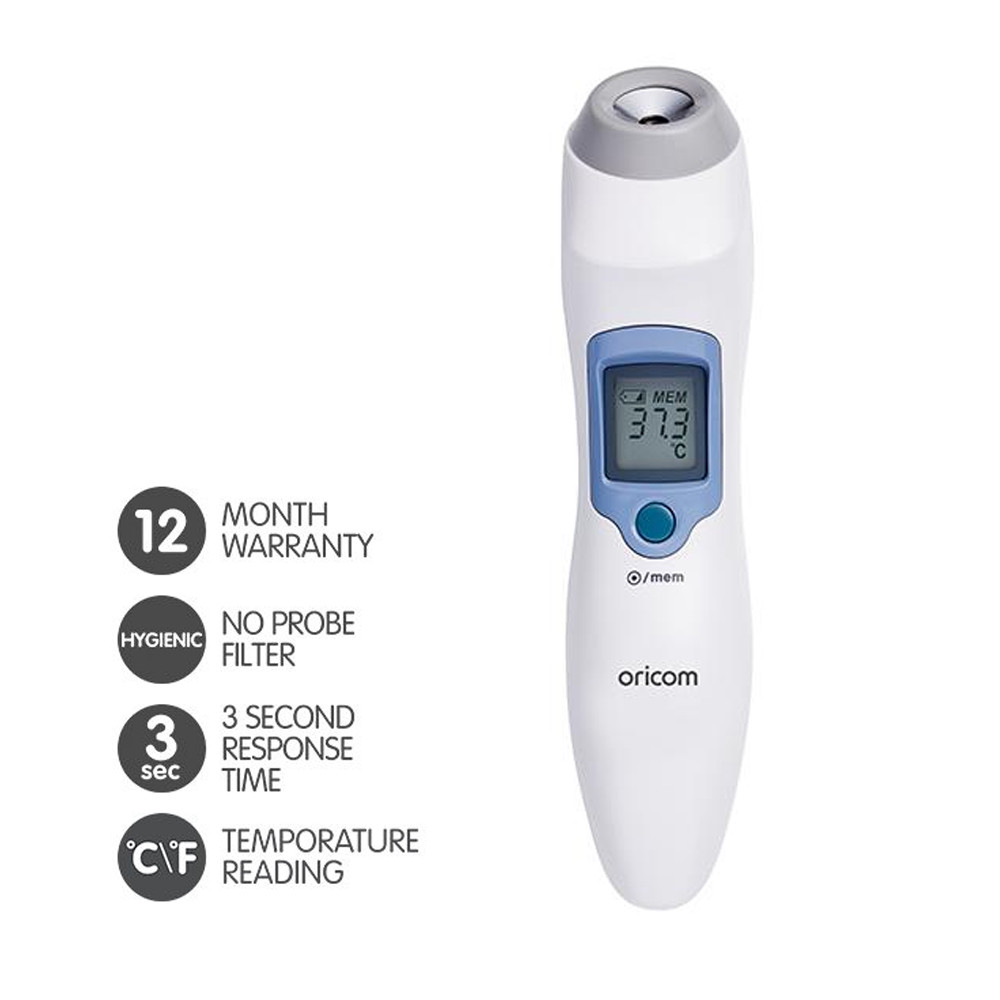

Oricom NFS100 Infrared Forehead Thermometer
- Approved by ARTG No. 198436 - included as a medical device on the Australian Register of Therapeutic Goods
- Convenient, hygienic way of testing temperature
- Fast accurate temperature detection (3 seconds)
- Stores up to 8 recorded temperatures
- Automatic power off 1 minute after non-use
Oricom NFS100 Infrared Forehead Thermometer
Fast Accurate Temperature Detection
With a simple, easy one-button push, the Oricom NFS100 Infrared Forehead Thermometer allows you to measure your baby's temperature in a non-invasive way. This helps to get an accurate reading and provides more safety by making it more hygienic for babies.
The NFS100 saves time, as it features an easy-to-read digital display that won't leave you second-guessing
The NFS100 is included as a medical device on the Australian Register of Therapeutic Goods (ARTG No. 198436).
Features
- Hygienic, no probe filters, no risk of virus transmission
- Stores up to 8 recorded temperatures
- Auto-off (after one minute of standby)
- Requires 1 x lithium CR2032 battery (supplied)
- Convenient carrying case included
- 1-year warranty for added peace of mind
No Probe Filter
3 Second
Response Time
Temperature Reading
in °C\°F
Month Warranty

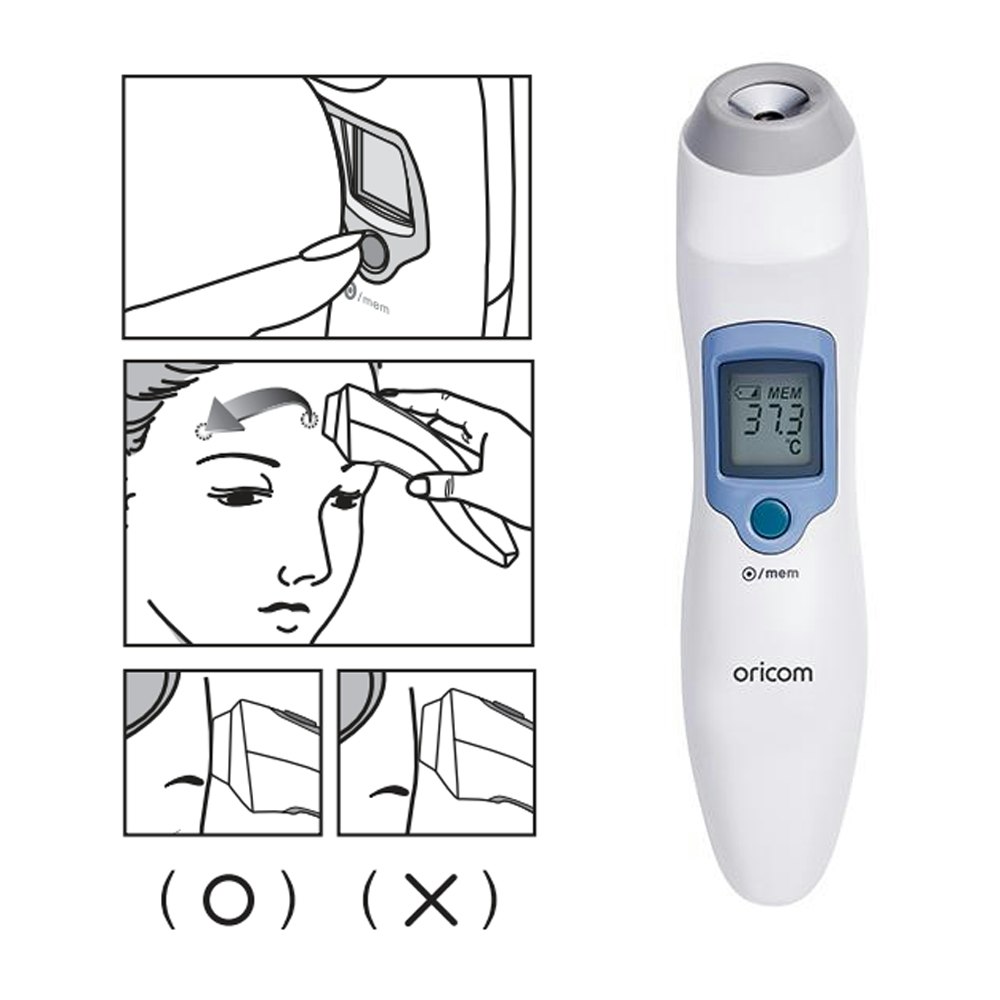

How to Use the Thermometer
Instructions
- To turn on, press the mem button briefly.
- All symbols are displayed on LCD when started. When ready symbol ( - - . - ) shows on the display, the thermometer is ready to use.
- Press and hold the scan button then place the probe flat and firmly on the forehead.
- Slowly slide the probe midline across the forehead to the hairline keeping the instrument flat and in contact with skin.
- The unit beeps one time (1) per second, the final beep only occurs after the scan button is released, the thermometer should remain in contact with the skin once the scan button is released until the final beep is heard.
- Read the temperature on the display.
Frequently Asked Questions
Q: How do I get the best results from my thermometer?
A: Perspiration can affect the reading and therefore the forehead should be clean and dry. The child should also remain still whilst taking the temperature, so it is best to ensure they are calm and relaxed. This can sometimes be a challenge, and therefore the temperature can be taken whilst the child is asleep.
- It is imperative that the temperature is measured as described in the instruction manual. For the NFS100, the thermometer needs to make clear and constant contact with the forehead whilst being rubbed from the temple to the centre of the forehead, or vice versa, in slow, steady motion.
- In addition, the thermometer should be used when at room temperature. If stored in a colder, or warmer, location the thermometer needs to be left to adjust to the room temperature to ensure the reading is accurate.
Q: How do I change the temperature mode from Celsius to Fahrenheit or Fahrenheit to Celsius?
A: To change from Celsius to Fahrenheit or vice versa. Press and hold the memory (MEM) button then the scan button at the same time for 2 seconds.
Comparison

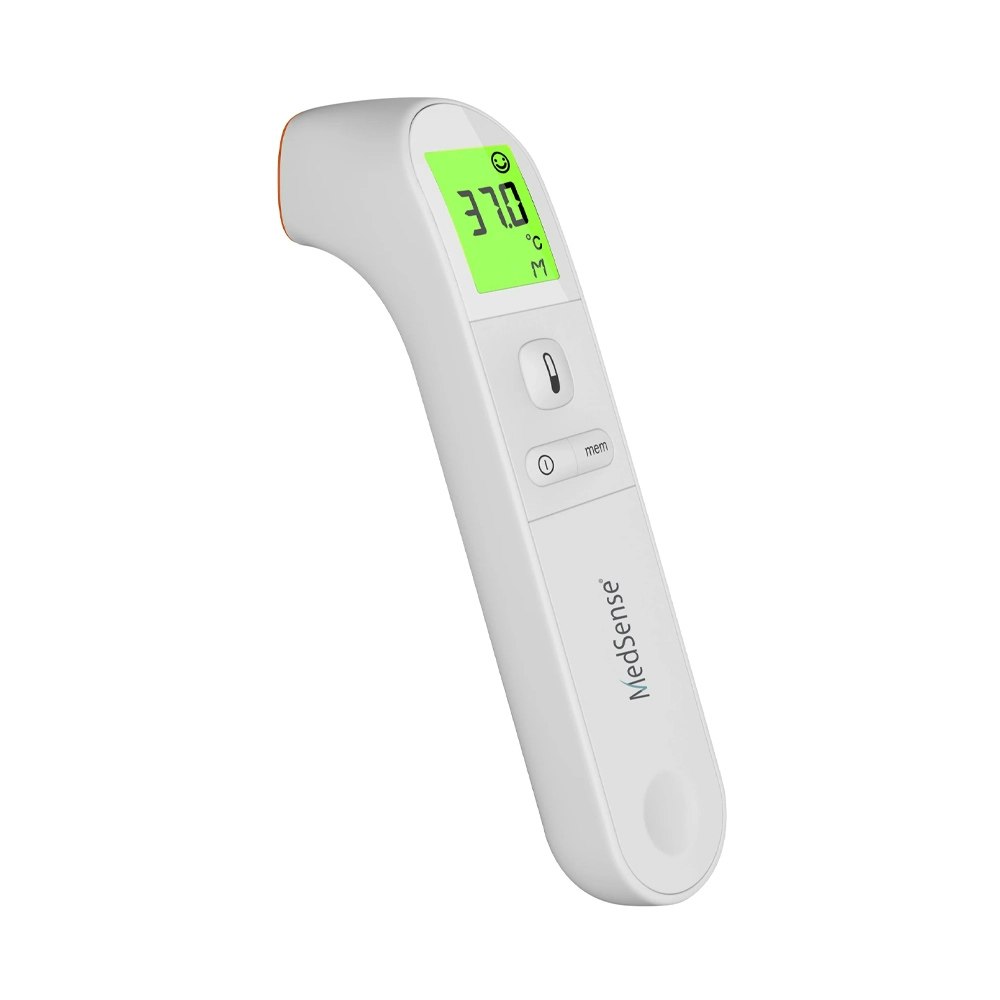

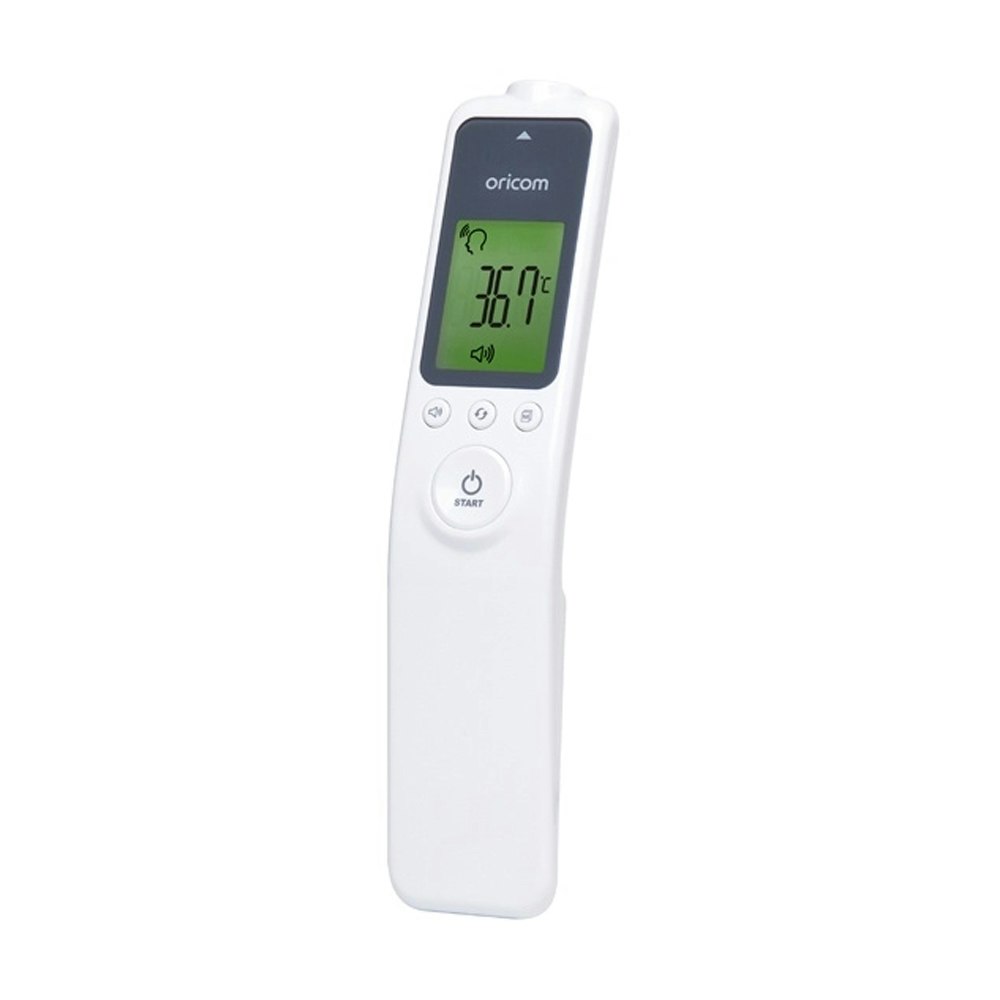

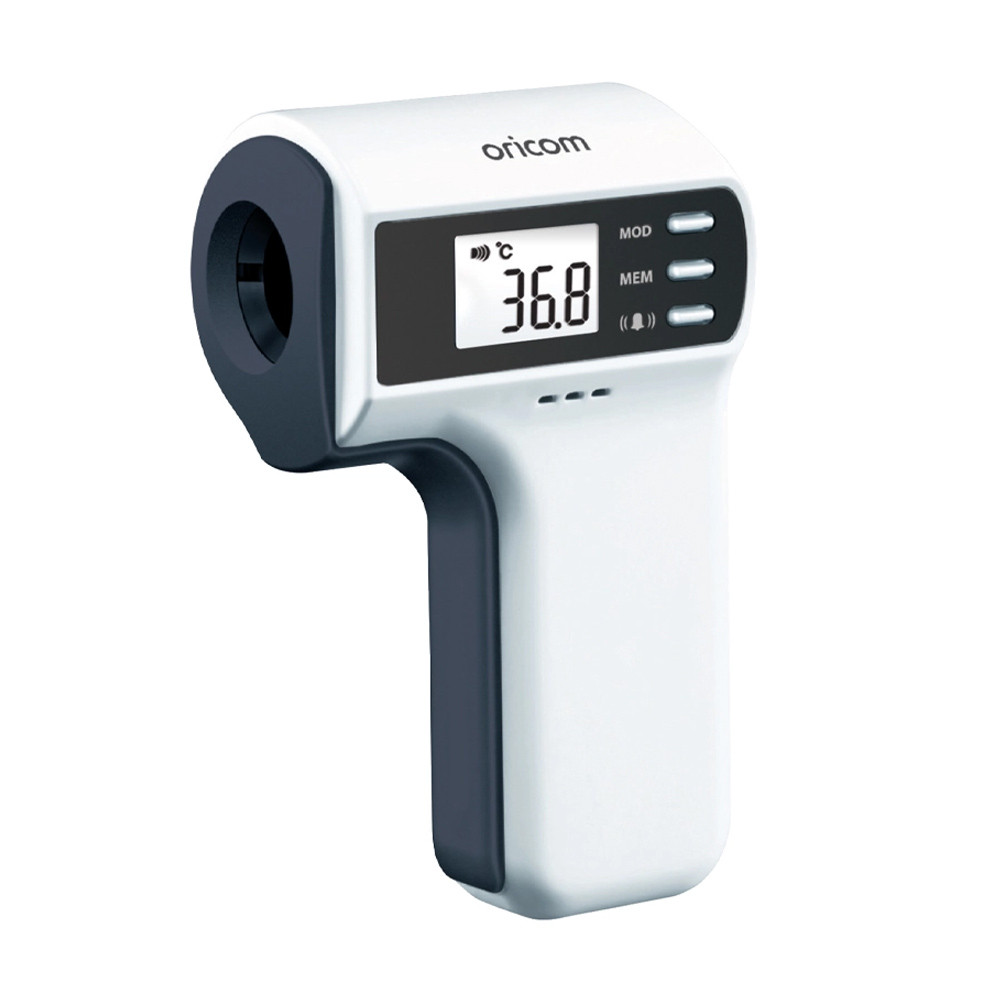

| Model | Oricom NFS100 Forehead Thermometer | Oricom FS300 Non-Contact Infrared Thermometer | Oricom HFS1000 Non-Contact Infrared Thermometer | MedSense Non-Contact Thermometer |
| Batteries | 1x Lithium CR2032 button battery | 2x AAA Alkaline Batteries | 2x AA Alkaline Batteries | 2x AAA Batteries |
| Stored Recorded Temperature | 8 | 32 | 32 | 9 |
| Response Time | 3 seconds | 2 seconds | 2 seconds | 1 second |
| Warranty | 12 months | 12 months | 12 months | 24 months |
| Detection | Body temperature detection (Contact) | Body, room or surface temperature detection (Non-Contact) | Body, room or surface temperature detection (Non-Contact) | Body, room or surface temperature detection (Non-Contact) |
| Key Feature | Automatic Power off | Large backlit LCD display | Colour coded reading | Positoning guidance assistance |
| Accuracy | ±0.2°C (±0.4°F) : 20 ~ 42.2°C (68.4 ~ 108.0°F) | ±0.2°C (36°C to 39°C) | ±0.2 °C/±0.4 °F(36 °C~39 °C/196.8 °F~102.2 °F), Other Accuracy: ±0.3 °C/±0.5 °F | (35.0°C~42.0°C) ±0.2°C, (95.0°F~107.9°F) ±0.4°F, other temperature ±0.3°C |
| You are viewing this product | View | View | View |
Specifications
| Measurement Method | Infrared(IR) measurement |
| Measuring Time | 3 seconds for the forehead |
| Memory Capacity | 8 readings |
| Sound | Measuring sound |
| Screen Type | Liquid crystal display(mono LCD) |
| Power Saving | Turns off automatically after one minute |
| Power | Includes 1 x CR2032 (1ea.) About 6,000 readings |
| Dimensions | 3.3(W) x 4.2(D) x 14.3(H) cm |
| Weight | 60g with battery |
Cleaning Instructions
The sensor is a very sensitive part and easily damaged. For accurate measurement please keep the sensor clean. To clean the sensor, please keep it facing down and carefully clean with an alcohol moistened cotton bud, allow it to dry for at least one hour before using. To clean the outside use a cloth moistened with alcohol or water.
About Oricom
Founded in 2003, 100% Aussie owned Oricom is an expert in communication technologies and a leader in design and ideas. Oricom is 100% Australian owned, they have firsthand understanding of the unique communication challenges facing their customers in Australia and New Zealand.
Because of this knowledge and expertise, our products are built specifically for local conditions and have been expertly engineered to be technically exact and very robust. We pride ourselves on quality engineering paired with functional and attractive design.
Sleep Solutions is registered as a provider with the NDIS (National Disability Insurance Scheme)
More Information| Use | Babies, Adults, Children |
|---|---|
| Display Type | Backlit LCD display |
| Coverage | N/A |
| Technology | Infrared thermometer |
| Power | CR2032 battery |
| Dimensions | 3.3(W) x 4.2(D) x 14.3(H) cm |
| Inclusions | 1 x Oricom NFS100 Infrared Forehead Thermometer, 1 x CR2032 battery, 1 x Carrying case, 1 x extra Probe |
| Manufacturer's Warranty | 1 Year Warranty |
| Manufacturer | Oricom |
